EXPOSED INTERNAL LINING
gather round AFL NSW.jpg
CodeMark Certificate

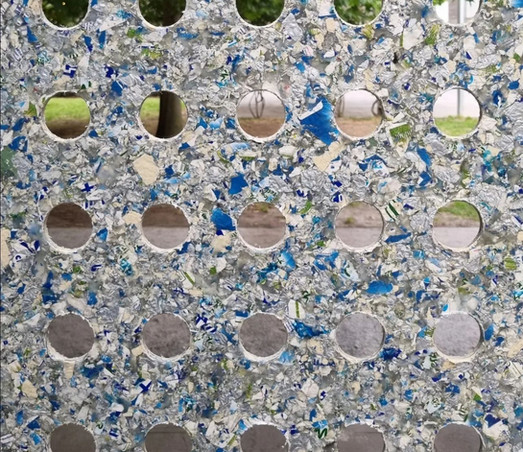

saveBOARD Exposed pre-finished internal wall & ceiling lining is a unique design feature for any residential or commercial project. The core of the product is made from shredded and compressed composite packaging, which can be seen through the transparent facing sheet. Aesthetically it allows the occupants to see the makeup of the board, while giving the user a sustainable and superior performing product.

It's a durable, moisture and mould resistant wall & ceiling lining ideal for garages, accent walls, industrial spaces, hallways and other high traffic areas. The colour is created from the original consumer packaging by segregating the feed stock into different colours groups on arrival prior to manufacture.


APPLICATION

  • Pre-finished Interior Wall and Ceilings.

  • Garage lining instead of plywood or plasterboard

  • High impact areas.

  • Commercial spaces where wear marks on the surface won't be noticeable due to textured finish.

  • Suitable for external facing walls using our E3 guide.

  • Curved walls and bends down to 150mm radius - requires Kerf cutting of the back face.

  • Material Group 3 fire rating.

  • STC Rating of 30dBA at 10mm thickness board only

  • 400mm stud centres to prevent warping of surface.

  • 2-4mm gap required between sheets in high humidity zones


THICKNESS

10mm square edge.

LENGTH - All 1200mm wide

2400mm to 3000mm (standard 2.4m, 2.7m, 3.0m)

Custom cut up to 6000mm, with minimum order qty.

COLOURS

  • Black

  • Waitoa

  • Blue

  • White Noise

  • Community

DESCRIPTION

  • Pre-finished Interior Wall and Ceiling Board.

  • Square finished edges

  • No need to paint, plaster or cover fixings

  • Every board is different, but made from the same feedstock material to provide a consistent blend of colours.

  • Screw anything direct to the surface, no need to find studs.

  • Available in a range of colours and patterns (made from waste) which are dependent on which product being processed.

  • Excellent wind and seismic bracing applications.

  • Good resistance to mould

  • Water repellent, but not a replacement for bathroom plasterboard.

  • ZERO Water, Glues, Chemicals added. VOC's and Formaldehydes are < 1% of the Green Building Standard (0.004mg/m2/hr)

  • Declare label: Our products have been determined to meet the requirements for all applicable Imperatives of the Living Building Challenge:

  • Embodied Energy calculations have been completed for our products for a 'cradle to gate' life cycle.

  • Use Masterspec​ 5119SL



See colours below - click on circles to see options

COMPLIANCE

saveBOARD is a US proven product with > 15 years in-service history. The product has been successfully tested in New Zealand and can be used as a structural bracing unit and demonstrates performance above NZ market leading products.

The documentation attached clearly demonstrates that saveBOARD meets all obligations under s14G of the Building Act. saveBOARD is also recognised as 1 of 5 product substitutions for plasterboard in New Zealand.

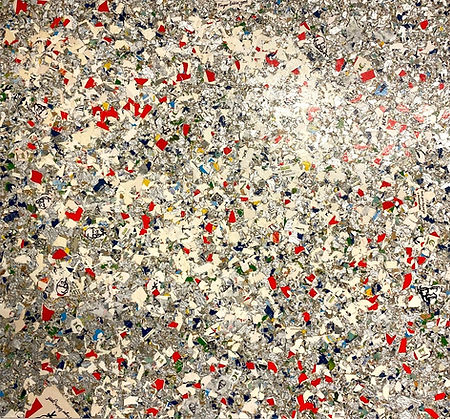

KFC Art by saveBOARD_edited_edited_edited.jpg

 CUSTOMISATION
BY ARRANGEMENT

PRODUCT


BRANDING

WW Brick board1_edited_edited.jpg

DESIGN
