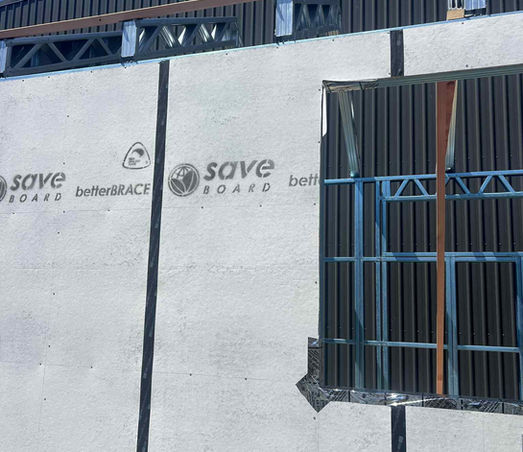

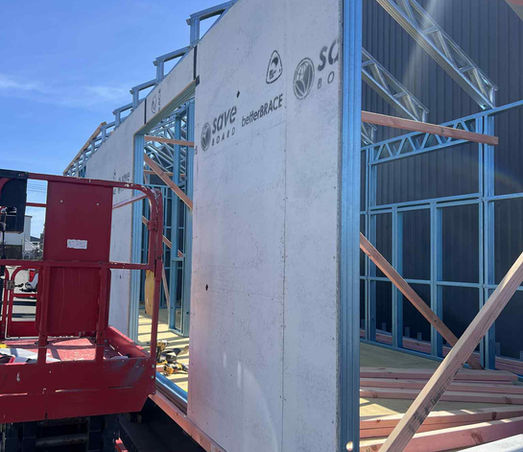

Our saveBOARD betterBRACE 4Steel product is a thermally broken rigid air barrier. A cost-effective, high-performance exterior sheathing for steel-framed buildings, suitable for everything from residential homes to multi-storey construction. Engineered for strength, it is designed for use in Extra High wind zones and finished with a moisture-resistant facing material for superior durability, combined with a 10mm EPS backing to provide an R 0.4 thermal break.
betterBRACE allows builders to close in a building faster, enabling interior fit-outs to begin sooner - even before the exterior rain screen is installed. This not only reduces potential project delays but also provides additional noise reduction and insulation benefits.
By choosing saveBOARD betterBRACE, you contribute to carbon-negative construction. With a Total Global Warming Potential (A1-A3) -3.8 kg CO2e/m2 (or -550kg CO2e/m3), it takes carbon out of both new builds and refurbishments.
-
Engineered composite board for external underlay applications.
-
Impact resistant
-
Thermally broken rigid air barrier lining
-
4Steel includes 10mm EPS for steel frame buildings
-
Excellent wind & seismic bracing capacity
-
Noise attenuation with high STC rating - 30dBA at 10mm thickness board only
-
ZERO Water, Glues, Chemicals added. VOC's and Formaldehydes are < 5% of the Green Building Standard (0.005mg/m2/hr)
-
Declare label: Our products have been determined to meet the requirements for all applicable Imperatives of the Living Building Challenge.
-
Environmental Product Declaration (EPD) for our betterBRACE rigid air barrier has been completed - link above.
-
Use MasterSpec 4171SB
-
Bracing Capacity:
-
17mm 4Steel
-
Bracing unit 0.6m x 2.4m; W = 57 BU/m EQ = 68 BU/m
-
Bracing unit 1.2m x 2.4; W = 73 BU/m EQ = 80 BU/m
-
-
Note: This installation video is for our 10mm betterBRACE rigid air barrier, however the principles are the same. Noting the fixing spacing is different and 4Steel is installed with screws.
Option A – Synthetic Wrap
Option B – Taping
